Electrical components list for circuits, panels and everyday equipment

Electrical components list by function

An electrical components list is more useful when it shows what each part does, not only what it is called. In working circuits and control panels, parts usually fit into functional groups: passive components that resist, store or filter energy; semiconductor devices that switch, rectify, regulate or amplify; power-conversion and energy-storage parts; switching and control devices; sensors; protection devices; wiring and interconnection hardware; and mechanical items such as enclosures and mounting rails. This guide sorts common components by function so a schematic symbol, catalog entry or bill of materials line can be tied back to the role the part plays in the system. For more related reference guides, see the Components section.

The boundary between “electrical” and “electronic” components is not fixed. A resistor on a printed circuit board, a circuit breaker in a distribution panel and a contactor in a motor starter are all components, but they are not selected in the same way. Electronics work often focuses on signal behavior, package size and semiconductor ratings. Electrical installations and machines usually give more weight to voltage class, current rating, conductor protection, enclosure suitability, grounding and compliance with applicable standards.

The core list at a glance

The table below gives a practical overview before each group is discussed in more detail.

Component group	Typical examples	Main purpose	Key selection checks
Passive components	Resistors, capacitors, inductors, ferrites, thermistors	Limit current, divide voltage, store energy, filter noise or set timing	Value, tolerance, voltage, current, power, temperature and package
Active components	Diodes, LEDs, transistors, MOSFETs, ICs, microcontrollers	Switch, rectify, regulate, amplify, process logic or emit light	Polarity, operating voltage, current, speed, thermal limits and datasheet conditions
Power and conversion	Transformers, power supplies, rectifiers, regulators, inverters, batteries	Provide, isolate, convert or store electrical energy	Input and output ratings, efficiency, isolation, ripple, heat and safety approvals
Switching and control	Switches, relays, contactors, PLCs, pushbuttons, timers	Open, close, sequence or automate circuits	Contact rating, coil voltage, load type, duty cycle and control voltage
Sensing and feedback	Limit switches, proximity sensors, temperature sensors, current sensors	Convert physical conditions into electrical signals	Range, accuracy, output type, response time, wiring and environment
Protection components	Fuses, circuit breakers, surge protective devices, GFCIs, thermal cutouts	Reduce risk from overload, short circuit, ground fault, surge or overheating	Interrupting rating, trip curve, voltage, current, coordination and applicable code
Interconnection	Wires, cables, terminals, connectors, busbars, terminal blocks	Carry current and join parts reliably	Ampacity, insulation rating, conductor material, termination method and strain relief
Mechanical and mounting	Enclosures, DIN rails, heat sinks, standoffs, cable glands, labels	Protect, organize, cool and identify assemblies	Material, ingress protection, thermal path, spacing, service access and marking

Passive components

Passive components do not provide power gain by themselves. They are the basic parts used to shape voltage, current, timing and frequency response. In electronics education and component catalogs, the most common passive families are resistors, capacitors and inductors.

Resistors and variable resistors

A resistor opposes current and drops voltage according to its resistance value. Common uses include LED current limiting, pull-up and pull-down networks for digital inputs, voltage dividers, biasing circuits, termination networks and test loads. The ohm value is only the starting point. Power rating, tolerance, temperature coefficient, maximum working voltage, noise and package size can all affect long-term reliability.

Variable resistors include potentiometers and trimmers. A potentiometer is often used for an operator adjustment, such as volume or setpoint control. A trimmer is normally set during calibration and then left in place. Thermistors are resistance-based temperature components; negative temperature coefficient types are often used for temperature sensing or inrush-current limiting, while positive temperature coefficient types may be used in protection or compensation roles.

Capacitors

A capacitor stores energy in an electric field and is widely used for decoupling, filtering, coupling, timing and energy buffering. Ceramic capacitors are common for high-frequency decoupling near IC power pins. Aluminum electrolytic capacitors provide larger capacitance for bulk energy storage, but they are polarized and have lifetime limits influenced by temperature and ripple current. Film capacitors are often chosen where stability, pulse handling or AC behavior matters.

Important capacitor checks include capacitance, voltage rating, dielectric type, equivalent series resistance, ripple-current rating, leakage current, polarity and temperature range. In power circuits, designers often apply voltage derating and check ripple heating. In signal circuits, dielectric behavior and tolerance can matter more than the capacitance value alone.

Inductors, coils and ferrite parts

An inductor stores energy in a magnetic field and opposes rapid changes in current. Inductors appear in filters, DC-DC converters, motor drives, radio-frequency circuits and electromagnetic interference control. Chokes are inductors optimized to block unwanted noise while passing the intended current. Ferrite beads are often used to attenuate high-frequency noise, but they should be selected from impedance curves rather than by package size alone.

Key ratings include inductance, saturation current, DC resistance, self-resonant frequency, core material, shielding and temperature rise. If a power inductor saturates, it no longer behaves as expected, which can lead to converter instability or excessive ripple.

Active and semiconductor components

Active components use semiconductor behavior or an external supply to control current, perform logic, regulate power or process signals. They usually require close attention to polarity, thermal design and the operating conditions stated in the manufacturer datasheet.

Diodes, LEDs and rectifiers

A diode conducts more easily in one direction than the other. Rectifier diodes convert AC to DC in power supplies. Schottky diodes offer low forward voltage and fast switching, while Zener and TVS diodes are used for voltage clamping and transient protection. LEDs are diodes that emit light and normally require current limiting through a resistor, driver or regulated current source.

Selection checks include reverse voltage, forward current, surge current, forward voltage drop, switching speed and package thermal resistance. In AC-to-DC supplies, rectifier heating and reverse recovery can become significant. In low-voltage battery circuits, even a small forward-voltage difference can affect efficiency.

Transistors, MOSFETs and power semiconductors

Transistors switch or amplify electrical signals. Bipolar junction transistors remain useful for small-signal switching and analog gain. MOSFETs are common in power switching, load control, motor drivers and DC-DC converters because they can switch efficiently when properly driven. IGBTs and thyristors are used in higher-power applications where voltage and current ratings exceed the practical range of many smaller devices.

For MOSFETs, the headline current rating is rarely enough. Gate threshold voltage, on-resistance at the actual gate-drive voltage, total gate charge, avalanche rating, safe operating area and thermal resistance should be checked. For inductive loads such as relays, solenoids and motors, the switching device also needs a defined path for stored magnetic energy, commonly through a flyback diode, snubber or transient suppressor.

Integrated circuits and controllers

Integrated circuits combine many devices into one package. Common examples include voltage regulators, operational amplifiers, comparators, logic gates, motor-driver ICs, analog-to-digital converters, communication transceivers, memory and microcontrollers. A microcontroller can read sensors, drive outputs and execute programmed logic. A PLC is generally used in industrial control panels where field wiring, diagnostics and ruggedness are priorities.

IC selection depends on supply voltage, input and output limits, speed, accuracy, communication interface, package, thermal performance and software or firmware requirements. The supporting passive parts around an IC are not optional details. Decoupling capacitors, timing components, pull resistors and protection networks often determine whether the IC works reliably in the final assembly.

Power, conversion and energy storage components

Power components provide usable voltage and current to the rest of the system. A transformer changes AC voltage and can provide isolation when designed for that purpose. A rectifier changes AC to DC. A regulator maintains a more stable output voltage. A DC-DC converter steps voltage up or down with switching components, magnetic parts and control circuitry. An inverter converts DC to AC, commonly for motor drives, backup power or renewable-energy systems.

Batteries and supercapacitors store energy, but they must be treated as sources capable of delivering high fault current. Battery selection involves chemistry, nominal voltage, capacity, discharge rate, charging method, protection circuitry, temperature range, shipping rules and end-of-life behavior. Fuses, disconnects, monitoring and enclosure design become part of the practical component set when energy storage is present.

Power supplies should be selected by more than wattage. Input range, output tolerance, ripple, efficiency, isolation rating, leakage current, short-circuit behavior, operating altitude, cooling method and regulatory markings all matter. In control panels and machine equipment, IEC 60204-1 is one of the standards commonly referenced for electrical equipment of machines, including requirements related to supply connection, control circuits, overcurrent protection and protective bonding. See also: Gadgets.

Switching, control and sensing components

Switching components make or break circuits. A simple toggle switch may control a low-current signal, while a contactor may switch a motor load many times per day. Relays use a coil to operate contacts and provide electrical isolation between the control circuit and the load circuit. Solid-state relays perform a similar control function without mechanical contacts, but they bring their own leakage-current, heat and failure-mode considerations.

Contact ratings must match the load type. A device rated for a resistive AC load may not be suitable for a DC inductive load at the same current. DC arcs are harder to extinguish because current does not naturally cross zero as it does in AC circuits. Motor loads, solenoids and transformers can also create inrush current or inductive kickback that exceeds steady-state current.

Control components include pushbuttons, selector switches, emergency-stop devices, timers, counters, PLC input and output modules, terminal relays and human-machine interfaces. These parts do more than provide convenience. They define how operators start, stop, reset and monitor equipment. In safety-related functions, component selection must follow the applicable machine-safety architecture rather than ordinary control logic alone.

Sensors convert physical conditions into electrical signals. Common examples include temperature sensors, pressure transducers, current transformers, Hall-effect sensors, photoelectric sensors, inductive proximity sensors, encoders and limit switches. Selection depends on measurement range, accuracy, repeatability, supply voltage, output format, response time, mounting distance, contamination exposure and cable length.

Protection, wiring and interconnection components

Protection components are designed to reduce the consequences of abnormal conditions. Fuses and circuit breakers respond to overcurrent, but they are not interchangeable in every application. A fuse usually has a replaceable element that opens after a defined current-time condition. A circuit breaker can be reset, but it still has voltage, current, interrupting and trip-curve limits. In the United States, UL 489 is associated with molded-case circuit breakers, while the UL 248 series covers low-voltage fuse classes. OSHA electrical rules and the National Electrical Code framework both emphasize proper overcurrent protection for conductors and equipment.

Other protective components include surge protective devices, transient voltage suppressors, metal oxide varistors, thermal cutouts, ground-fault circuit interrupters, arc-fault circuit interrupters, protective earth conductors and insulation barriers. Each responds to a different hazard. A surge device does not replace a breaker, and a breaker does not provide the same function as a ground-fault protective device.

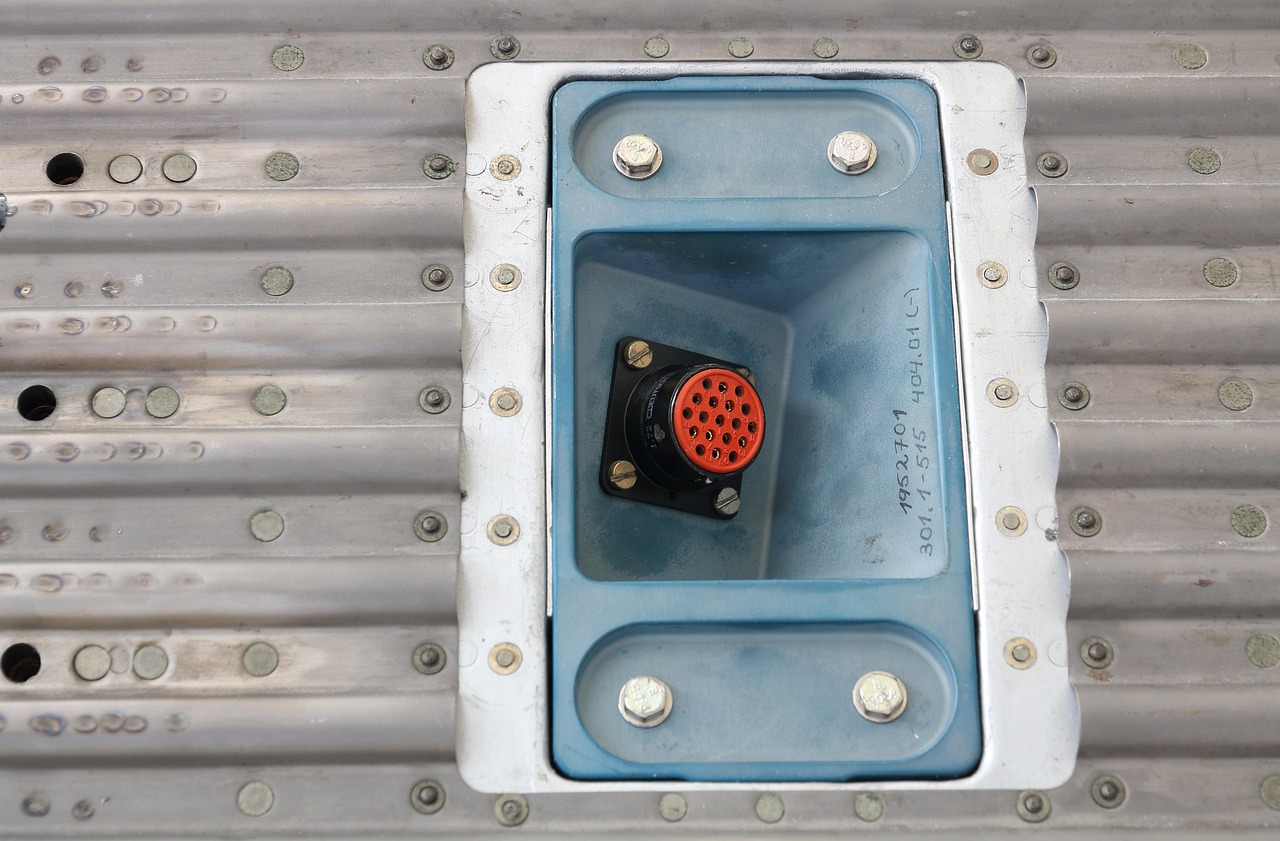

Wiring and interconnection parts are easy to underestimate because they seem less complex than ICs or power devices. In practice, many failures begin at terminations. Wires, cables, cable lugs, ferrules, terminal blocks, connectors, busbars, sockets and cable glands must be selected for current, insulation voltage, conductor material, temperature, vibration, pull force and environment. Screw terminals may require torque control. Crimp contacts require the correct tooling. Pluggable connectors need attention to mating cycles and keying.

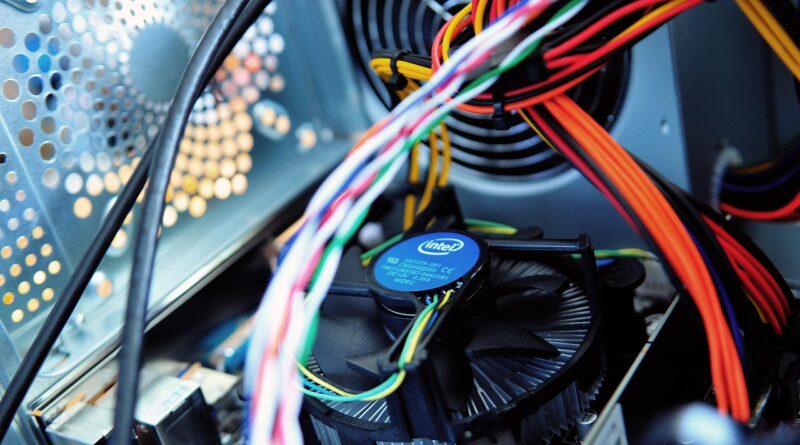

Enclosures, DIN rails, panel ducts, labels, heat sinks, standoffs and barriers are also part of the component system. They protect users from contact, maintain spacing, organize service work and help remove heat. A technically correct schematic can still become unsafe or unreliable if the enclosure, conductor routing or thermal path is poorly designed.

How to use the list in a bill of materials

A bill of materials should identify each component clearly enough for purchasing, assembly, inspection and future service. For a resistor, that may mean resistance, tolerance, power rating, package and temperature coefficient. For a breaker, it may mean poles, voltage, current rating, interrupting rating, trip characteristic and certification. For a connector, it may mean pitch, number of positions, current rating, mating part, locking method and wire gauge range.

A useful workflow is to start with the function, then verify the ratings. Ask what the component must do, what voltage and current it will see in normal and fault conditions, what environment it will operate in, how it will be mounted, how it may fail, and which standards or approvals apply. This prevents a common mistake: choosing a part that looks correct by name but is unsuitable by rating.

Where safety, mains voltage, machinery, building wiring or high-energy batteries are involved, component choice should be checked by a qualified person against the applicable local code, product standard and manufacturer documentation. A general list can explain functions, but it cannot replace project-specific design review.

Common mistakes when identifying components

• Confusing AC and DC ratings: Switches, breakers and relays may have different ratings for AC and DC loads.
• Ignoring heat: Resistors, regulators, MOSFETs, rectifiers and power supplies often fail when thermal limits are overlooked.
• Using capacitance alone: Voltage rating, polarity, ripple current, ESR and temperature can be more important than capacitance value.
• Forgetting inductive energy: Relay coils, solenoids and motors need a safe path for stored magnetic energy when switched off.
• Treating connectors as generic hardware: Contact plating, current rating, retention, vibration and tooling can decide reliability.
• Assuming protection devices are equivalent: Fuses, breakers, surge devices and ground-fault devices solve different problems.
• Leaving parts unidentified in service documents: Missing ratings or manufacturer part numbers make maintenance and replacement riskier.

Frequently asked questions

What is the difference between electrical and electronic components?

Electrical components is a broader term that can include wiring devices, protective devices, motors, transformers, switches and control-panel hardware. Electronic components usually refers to lower-power circuit parts such as resistors, capacitors, diodes, transistors and ICs. The categories overlap because modern equipment often contains both power wiring and electronic control circuits.

Which components should beginners learn first?

Start with resistors, capacitors, diodes, LEDs, switches, batteries and basic wires or connectors. Then add transistors, relays, voltage regulators, sensors and microcontrollers. This sequence helps connect circuit theory with visible behavior such as limiting current, storing charge, switching a load and reading an input.

Are wires and connectors really components?

Yes. In practical engineering, wires, cables, terminals, plugs, sockets and busbars are components because they perform defined electrical and mechanical functions. They must be rated and documented just like resistors, breakers or ICs.

Is a fuse a passive component?

A fuse is passive in the sense that it does not amplify or process a signal, but it is usually classified more specifically as a protective device. That functional classification is more useful because its main purpose is to open a circuit under defined overcurrent conditions.

How often should an electrical components list be updated?

A learning list can remain useful for years, but a procurement or compliance list should be reviewed whenever the design changes, a supplier discontinues a part, a standard is revised, or the operating environment changes. Safety-critical and mains-connected parts deserve the most frequent review.
