What Are Basic Electrical Components and Why Do They Matter in Every Circuit?

Why Do Basic Electrical Components Matter in Real Circuits?

Basic electrical components are the small parts that decide if a circuit lights an LED, charges a battery, starts a motor, or fails after a few weeks inside a hot enclosure. If you buy, repair, or design electronic products, it helps to read a circuit as a set of jobs: limit current, store charge, switch power, protect users, and pass signals with less noise. The idea is not hard, but the part choice still matters. A low-cost resistor with the wrong watt rating can get hot. A connector with thin plating can change a clean signal into an on-and-off fault. Anyone who has opened an old power adapter has probably seen brown marks around tired parts.

There is also a clear business reason to care about these parts. The U.S. Energy Information Administration reported that residential and commercial buildings accounted for about 27.6% of U.S. end-use energy consumption in 2023. More devices, chargers, controls, sensors, and small power supplies mean more components working every day. On the safety side, the Electrical Safety Foundation International cites National Fire Protection Association data showing electrical malfunctions or failures accounted for 13% of home structure fires from 2015 to 2019, with arcing involved in nearly three of five of those malfunction or failure fires. Good component choice is not just a school topic. It affects cost, safety, returns, and product life.

Components Turn Theory into Hardware

Voltage, current, and resistance are not only textbook terms. NIST lists the ampere, volt, and ohm as standard SI electrical units, and those units show up on datasheets, test meters, labels, and purchase orders. A resistor value in ohms tells you how much that part resists current. A capacitor value in farads tells you how much charge it can store. A relay contact rating tells you what load it can switch safely. Once you connect the number on the part with the way the circuit behaves, a schematic starts to look like a work plan instead of a strange drawing.

Small Parts Carry Big Responsibility

Most circuit failures do not start with a big spark. Many start with light overheating, a loose crimp, moisture inside a connector, or a part running near its limit month after month. That is why conservative ratings are common in real production. If a circuit runs at 12 V, you may see a 25 V capacitor instead of a 16 V one. If a resistor needs to dissipate 0.2 W, a designer may choose a 0.5 W part. That margin costs little compared with a field return, especially for export products that may face heat, vibration, and rough shipping.

Standards Make Parts Easier to Trust

Reliable sourcing is not only about the lowest price. UL Solutions explains that the UL Recognized Component Mark applies to a component checked for use inside a larger certified end product, with stated conditions of use. It is not the same as certification for a complete standalone product, but it gives buyers a better view of the safety context. IPC also publishes J-STD-001J for soldered electrical and electronic assemblies, covering process controls, materials, and acceptance criteria. These references help when a supplier says a board is built to an industry process, not just made to look neat.

Which Passive Components Should You Know First?

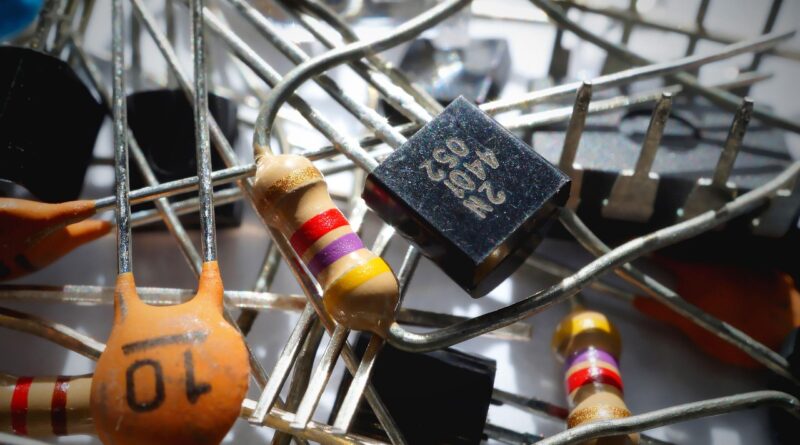

Passive parts do not amplify a signal by themselves, but they are used in almost every circuit. They set current, filter noise, divide voltage, store energy, and smooth unstable power. If you are new to components, start here. Passive parts appear in power supplies, LED drivers, sensors, appliances, industrial controllers, and consumer electronics.

Resistors Set Current Limits

A resistor is often the first part people learn because its job is easy to see on a simple circuit. It limits current, creates voltage drops, and sets bias points. IEEE Technology Navigator describes resistance through Ohm’s Law as the ratio of voltage across a conductor to current through it, commonly written as R = V/I. In a basic LED circuit, for example, a resistor stops the LED from drawing too much current. If a 5 V supply feeds a red LED with about 2 V forward voltage and the target current is 20 mA, the resistor is roughly 150 ohms. The calculation is simple, but it keeps the LED alive.

Capacitors Store and Release Charge

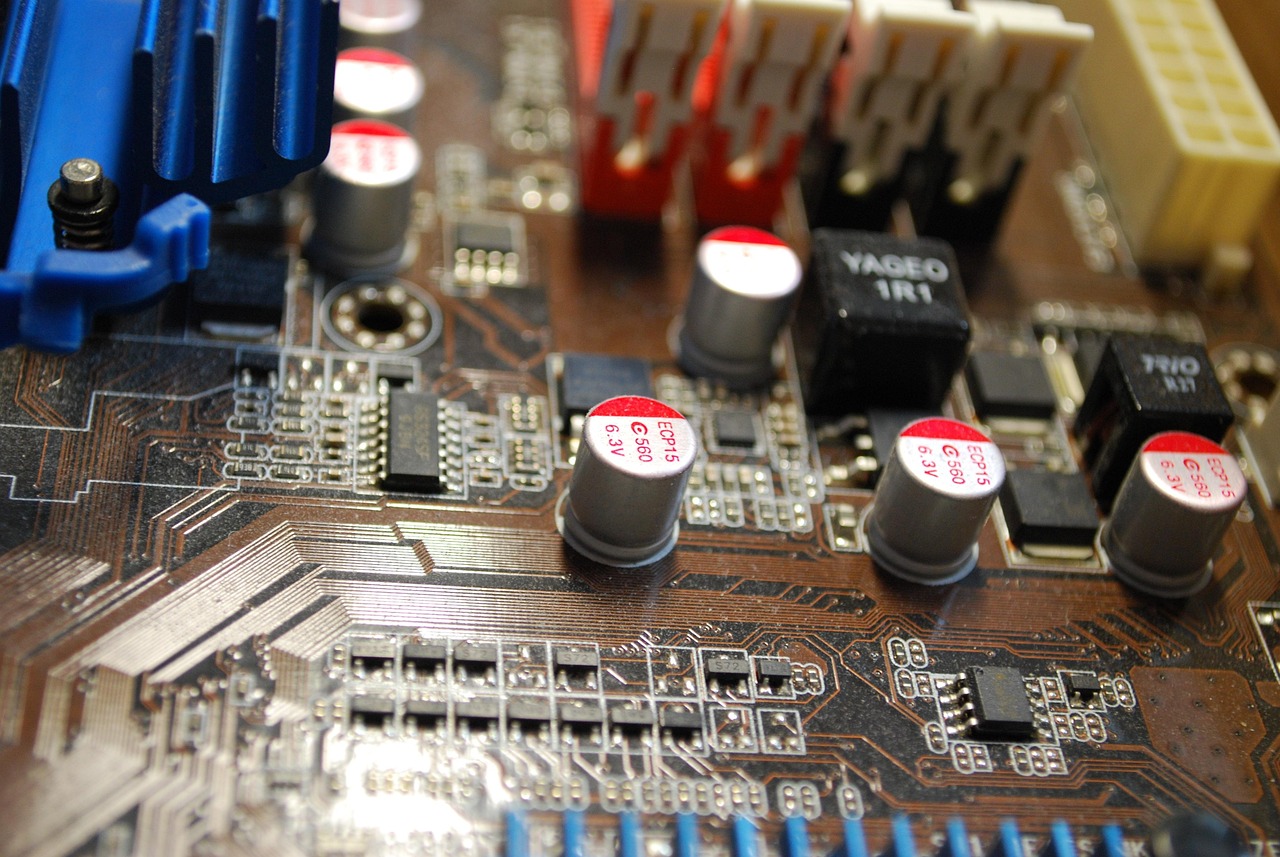

Capacitors work like small charge tanks. In a phone charger or sensor board, they help smooth voltage dips and absorb short spikes. Ceramic capacitors are often placed near IC power pins because they respond fast. Electrolytic capacitors can hold more energy, so they are common near power inputs. Values, voltage rating, equivalent series resistance, temperature range, and polarity all need checking. A polarized capacitor installed backward may vent or fail, and that is not the kind of failure any seller wants to see in a customer review.

Inductors Resist Current Changes

An inductor stores energy in a magnetic field and resists a sudden change in current. You see inductors in DC-DC converters, filters, motor drives, and EMI control. In a buck converter, the inductor helps turn a pulsed switch signal into a steadier output. The main specs include inductance, saturation current, DC resistance, and core type. If a part saturates at too low a current, it no longer works the way the designer expected. It may still look normal on the board, which makes troubleshooting slow and annoying.

Which Active and Control Components Change Circuit Behavior?

Active and control parts make a circuit respond to a signal or condition. They switch, amplify, rectify, sense, or isolate. These parts often decide whether a product feels fast, stable, and safe. They also come with more datasheet conditions, so selection takes time. A diode looks simple in a drawing, but its forward current, reverse voltage, leakage, recovery time, and temperature curve can change the design result.

Diodes Guide Current in One Direction

A diode lets current flow mostly one way. Rectifier diodes convert AC to DC in power supplies. Schottky diodes are often used where low forward voltage and fast switching help reduce heat. Zener diodes can clamp voltage for basic protection or reference work. In relay coils and motor circuits, a flyback diode gives stored energy a safe path when the switch opens. Without it, the voltage spike can damage a transistor or a microcontroller pin.

Transistors Switch and Amplify Signals

Transistors are everyday switches in modern electronics. A small base or gate signal can control a larger load, such as a fan, relay, LED strip, or solenoid. Bipolar junction transistors still work well for small signal use and low-cost switching. MOSFETs are often used in power circuits because they can switch with low loss when selected correctly. Check gate voltage, drain current, on-resistance, thermal resistance, and package size. A MOSFET with low on-resistance on paper can still run hot if the PCB copper area is too small.

Switches and Relays Give User Control

Switches look simple because people press them directly, but contact rating is the point to check first. A small tactile switch for a control signal is not a mains power switch. Relays let low-voltage electronics control higher-voltage or isolated loads. You need to check coil voltage, contact rating, insulation distance, lifetime, and load type. Motor loads and lamp loads may draw high inrush current, so the printed rating needs careful reading. One small line in the datasheet is easy to miss and costly to ignore.

How Do Protection and Connection Parts Keep Products Safer?

Protection parts stay in the background until something goes wrong. Connectors and wiring are much the same. They do not look special, but they carry the real current and signals through the product. In many field returns, the failed item is not the main chip. It is a connector pin, fuse holder, crimp, cable bend, or protection part that met a surge larger than planned.

Fuses and Breakers Limit Fault Energy

A fuse opens the circuit when current stays too high for too long. A breaker can be reset after it trips. Both protect wiring and equipment from fault energy, though their time-current curves are different. For small electronics, glass fuses, ceramic fuses, resettable polymer fuses, and thermal fuses all have their place. Choose by normal current, fault current, voltage rating, breaking capacity, and operating temperature. A fuse is not just a thin wire that melts; it is a safety part that must open the circuit cleanly.

Surge Parts Handle Short Spikes

Transient voltage suppressor diodes, metal oxide varistors, gas discharge tubes, and RC snubbers protect against spikes from switching, lightning-related surges, inductive loads, or electrostatic discharge. The right part depends on energy, response time, working voltage, and failure mode. For a USB data line, low capacitance matters. For an AC input, energy rating and safety approval usually matter more. Good protection often uses more than one part, not one all-purpose solution.

Connectors and Terminals Carry the Load

A connector must match current, voltage, contact resistance, mating cycles, wire size, locking style, and environment. Tin plating may be enough for many low-cost uses, while gold plating helps with low-level signals and frequent mating. Screw terminals suit equipment that needs service, but they can loosen under vibration if the design is weak. Crimp terminals need the right tool and pull-force checks. In production, one bad crimp station can create more trouble than a bad microchip batch. See also: Gadgets.

How Should You Read Datasheets before Buying Components?

Datasheets are not fun reading, but they prevent expensive mistakes. Before you approve a replacement part or quote a bill of materials, check the ratings that match the real use case. Do not stop at the headline value. A 100 µF capacitor, 10 A connector, or 30 V MOSFET can behave differently at high temperature, high ripple, tight spacing, or fast switching.

Electrical Ratings Show Safe Limits

Start with voltage, current, power, tolerance, insulation, and frequency limits. A resistor marked 1 kΩ may have 1%, 5%, or worse tolerance. A capacitor may lose much of its real capacitance under DC bias, especially small high-value ceramic types. A connector current rating may assume a certain wire gauge and ambient temperature. Read the test conditions, not only the large number on the first page.

Thermal Ratings Predict Long Life

Heat shortens the life of many parts. Check operating temperature, derating curves, thermal resistance, ripple current, and package notes. Electrolytic capacitor life often drops quickly as temperature rises. Power semiconductors need a heat path through copper, a heatsink, airflow, or a mix of these. If a product sits inside a sealed plastic box near a sunny window, the component temperature may be much higher than room temperature. That small box can get hotter than people expect.

Mechanical Details Prevent Assembly Trouble

Footprint, lead pitch, height, orientation, tape-and-reel format, soldering profile, and marking all affect production. IPC assembly standards are useful here because solder joint quality depends on land pattern, wetting, cleanliness, and process control, not only part quality. A part that works electrically but has the wrong package can slow the line, increase scrap, or make repair difficult. For export sourcing, also check lifecycle status and alternate suppliers before the part becomes hard to buy.

What Common Mistakes Should You Avoid with Basic Electrical Components?

Most beginner mistakes are easy to predict, and even experienced buyers repeat them when the schedule is tight. A safer habit is to match the part to the worst normal condition, then add a sensible margin. Also test samples from the actual supplier. Counterfeit or substituted components can look correct from the top, so visual checks alone are not enough.

Using Parts Too Close to the Limit

Running at the exact voltage, current, or temperature limit may pass a short bench test and fail later. A 12 V circuit using a 12 V capacitor is a common bad choice. A connector carrying its maximum rated current in a hot cabinet is another. Derating is not waste; it is how products survive daily use. For many commercial designs, using 50% to 80% of a rated limit is common when cost and size allow, though the right margin depends on the standard and application.

Mixing Similar Parts without Checking Specs

Two parts can share the same value and still behave differently. A 10 µF ceramic capacitor in X5R dielectric is not the same as one in Y5V dielectric. A fast diode is not the same as a slow rectifier. A logic-level MOSFET is not the same as a standard MOSFET if the gate drive is only 3.3 V. When replacing parts, compare the critical specs, package, pinout, approvals, and temperature range. Similar does not always mean compatible.

Ignoring Safety and Compliance Marks

For components tied to mains power, batteries, heaters, motors, or user-accessible connections, approvals and traceability matter. UL component recognition, IEC-based ratings, RoHS and REACH declarations, and supplier quality records can affect market access. No reliable public database covers every small component failure rate across all industries, so broad claims like this connector lasts twice as long should be handled carefully unless a supplier gives test data and conditions. Ask for documents, then check that the documents match the exact part number.

FAQ

Q1: What Are the Most Basic Electrical Components? A: The core list includes resistors, capacitors, inductors, diodes, transistors, switches, relays, fuses, connectors, and wires. These parts cover current control, energy storage, switching, protection, and connection.

Q2: What Is the Difference between Electrical and Electronic Components? A: Electrical components often handle power, switching, and connection, while electronic components usually process signals or control current with more precision. In real products, the two groups overlap a lot.

Q3: Which Component Should You Learn First? A: Start with the resistor because it links directly to voltage, current, and resistance through Ohm’s Law. After that, learn capacitors, diodes, and transistors because they appear in many simple circuits.

Q4: How Do You Choose a Safe Replacement Part? A: Match or exceed the original voltage, current, power, temperature, package, tolerance, and safety rating. Also check polarity, pinout, and approval marks before you install it.

Q5: Why Do Components Fail Even When the Circuit Works at First? A: Common causes include heat, vibration, poor solder joints, voltage spikes, moisture, weak connectors, and parts used too close to their limits. A short test can miss these long-term problems.
